Performance Diagram
Spindelträgerkühlung
Spindelträgerkühlung
Performance Diagram
Ungekühlt
Ungekühlt
Dimensions

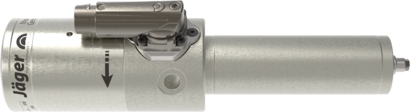

Z33-D060.52 S21
Item no. 15301036
Technical Specifications
| Stahlkugellager (Stück) | 2 |
| Lifetime lubricated | wartungsfrei |
| Frequency | 1000 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 60.000 rpm |
| Rated Power (Pmax/5s) |
0,55 kW *
(0,4 kW **) |
| Rated Power (S6-60%) |
0,5 kW *
(0,34 kW **) |
| Rated Power (S1-100%) |
0,43 kW *
(0,25 kW **) |
| Voltage (Pmax/5s) |
57 V *
(47 V **) |
| Voltage (S6-60%) |
57 V *
(47 V **) |
| Voltage (S1-100%) |
57 V *
(44 V **) |
| Current (Pmax/5s) |
10 A *
(8,2 A **) |
| Current (S6-60%) |
9,4 A *
(7,8 A **) |
| Current (S1-100%) |
8,6 A *
(8,1 A **) |
| Motor protection | PTC 100° C |
| Housing | Aluminium |
| Housing diameter | 33 mm |
| Cooling | Ungekühlt |
| Heat dissipation | über den Spindelträger |
| Housing temperature | <+ 45° C |
| Ambient temperature | + 10° C … + 45° C |
| Sealing Air | yes |
| Protection category | IP54 |
| Tool Change | Pneumatischer Direktwechsel |
| Collet type | 5,1P-5° |
| Clamping range | 3,5 mm (1/8“) |
| Direction of motion | Rechtslauf |
| Coupler plug | 9-pol (I-TEC) |
| Weight | 1,2 kg |
| Concentricity | <1 µ |
*) Spindelträgerkühlung **) Ungekühlt
